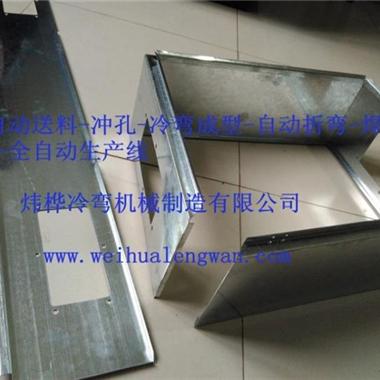

溫州基業箱生產設備-溫州基業箱成型機為山東煒樺冷彎機械制造有限公司研發生產的一款新型鈑金加工設備，只需要一個工人操作即可！

溫州基業箱生產設備-溫州基業箱成型機主要參數：

總電機功率：29kw

電壓參數：380V/415V，50Hz, 3相

電氣控制：PLC

驅動電機：變頻電機驅動

鋼帶厚度：0.5~1.5 mm（視型材而定）

鋼帶寬度：≤1000mm,（視型材而定）

軋輥材質：鉻十二 淬火HRC58°-62°

液壓油型號：46#液壓油

材料規格： 1、Q235   2、不銹鋼  3、鍍鋅鋼板

折彎方式：在線自動折彎成型

生產速度：0-12 m/min

切斷方式：液壓切斷

切斷尺寸公差：≤ ±0.3mm（長≤3000mm）

切斷模具材質：鉻十二鉬釩

氣源：0.5m3/Min；壓力為0.8MPa

   “煒樺冷彎”我公司生產的配電箱成型流水線。動力柜柜體生產設備，配電箱箱體自動折彎成型機、消防箱生產線，光纖箱生產線等可根據客戶的不同生產、工藝需求，設備配置，集成生產所需的眾多工藝—自動送料、沖孔、折彎、成型。后續可選配機械手焊接等等；

配電箱成型流水線設備，——“煒樺冷彎”我們更專業！

Main parameters of distribution box forming line: total motor power: 29kw voltage parameter: 380V < 415V, 50Hz, 3-phase electrical control: PLC drive motor: frequency conversion motor drive steel strip thickness: 0.51.5 mm (depending on profile) steel strip width: ≤ 1000mm, (depending on profile) Roller material: chromium 12 quenched HRC58 °- 62 °hydraulic oil model: 46 # hydraulic oil material specification: 1, Q2352, stainless steel 3, Galvanized steel sheet bending mode: on-line automatic bending forming production speed: 0 to 12 m/min cutting mode: hydraulic cutting dimensional tolerance: ≤ ±0.3mm (length ≤ 3000mm) cutting die material: chromium 12 molybdate vanadium Gas source: 0.5m3 Minmin; The pressure is 0.8MPa "Wei Hua cold bending" our company produces the distribution box forming assembly line. Power cabinet production equipment, distribution box automatic bending molding machine, fire box production line, optical fiber box production line, etc., according to the customer's different production, process requirements, equipment configuration, Integrate many processes needed for production-automatic feeding, punching, bending, forming. Follow-up optional manipulator welding and so on; distribution box forming assembly line equipment,-"Wei Hua cold bending" we are more professional!
